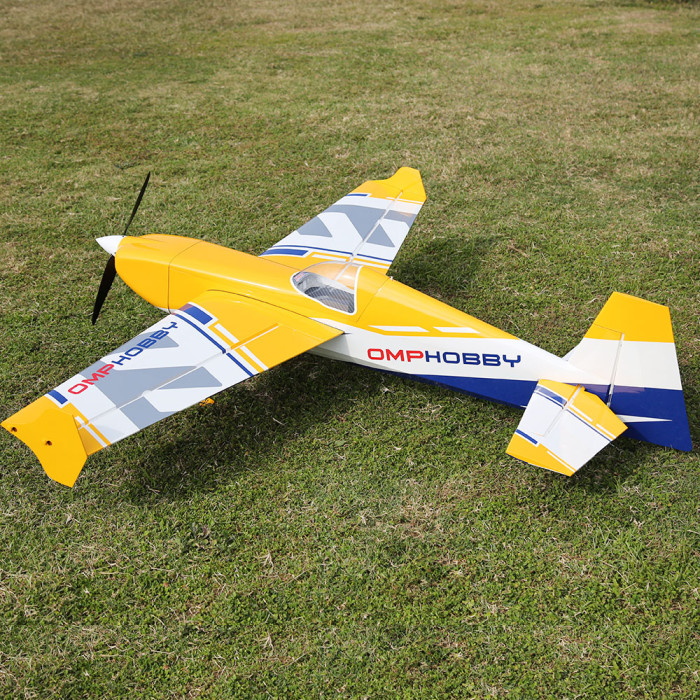

OMPHOBBY 60” Edge 540 Kevlar Reinforced Balsa 3D Airplane
BNF: without Transmitter
RTF-Mode1: come with Transmitter (right hand throttle)
RTF-Mode2: come with Transmitter (left hand throttle)
Adding to cart succeed
OMPHOBBY 60” Edge 540 Kevlar Reinforced Balsa 3D Airplane
color:red,size:xxl
Subtotal: US$ 0
View My Cart
-
- Product Name: OMPHOBBY 60” Edge 540 Kevlar Reinforced Balsa 3D Airplane
- Item NO.: 60'' edge
- Weight: 30 kg = 66.1387 lb = 1058.2189 oz
- Category: RC Models > Airplanes
- Tag: balsa wood , EDGE , 60'' , 540
- Brand: OMPHOBBY
- Creation Time: 2024-10-31

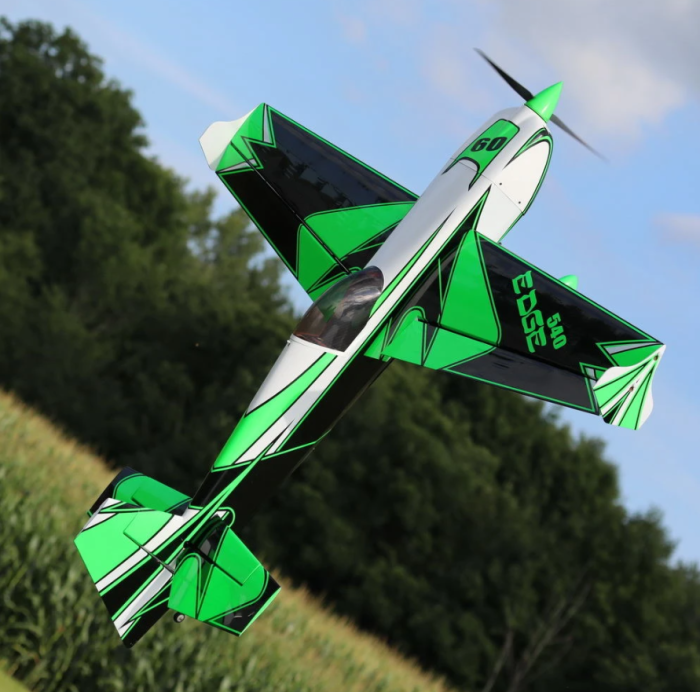

- OMPHOBBY 60'' Edge 540 comes in the balsa version as well as the Kevlar reinforced version. We are offering Four Beautiful paint schemes (Green, Orange,Red and Yellow). Very durable and Very vibrant in color. Edge 540 is a 3D flying BEAST. This plane will do everything that you want it to do and more.
- If you are not into 3D flying, don’t be afraid, this plane flies very well as a Sport plane too.

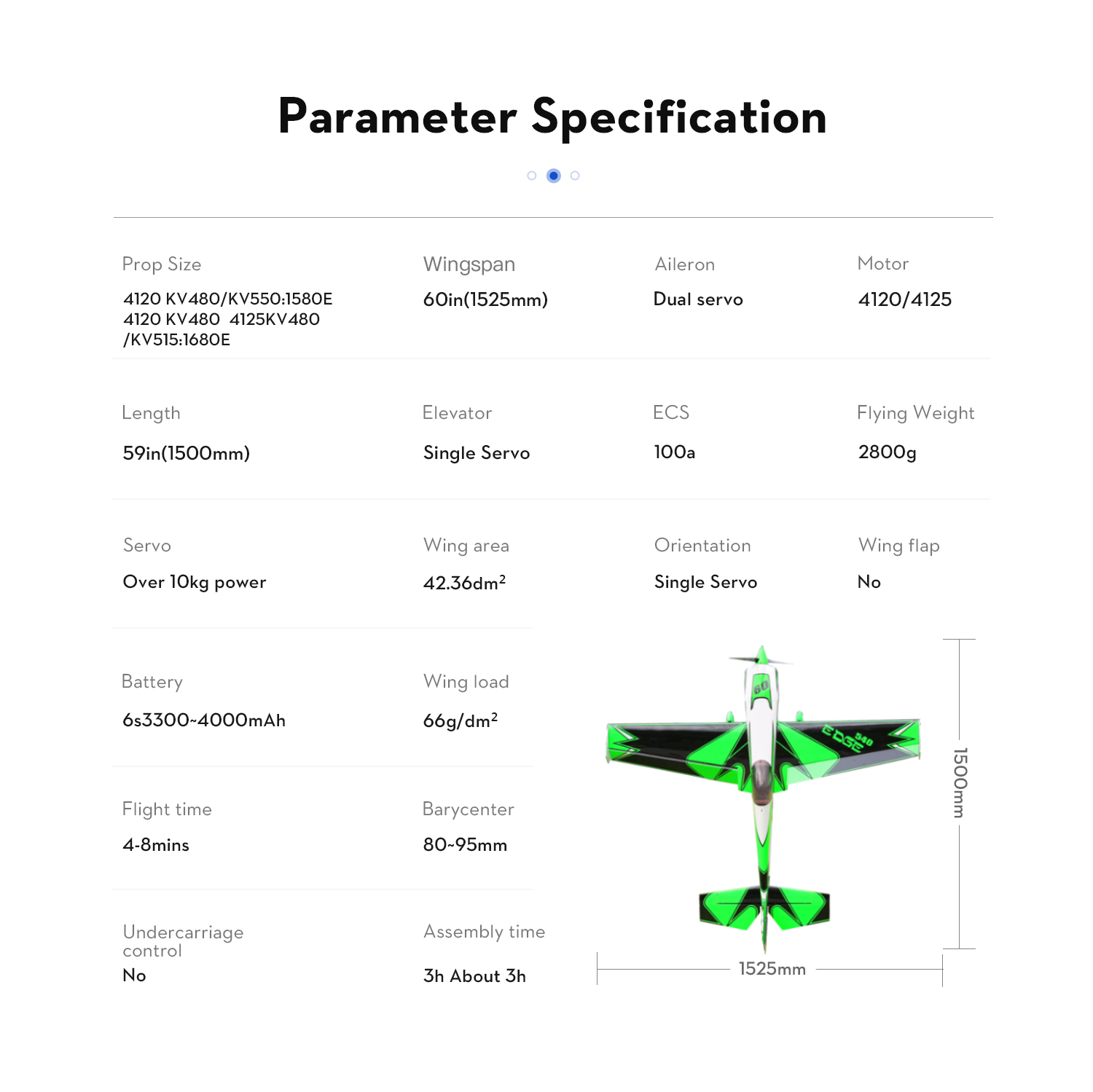

Parameter Specification
Item：
OMPHOBBY 60'' EDGE 540
Color:
Green▢ Red▢ Yellow▢ Orange▢
WingSpan:
1524mm(60in)
Full Length:
1500mm(59in)
Flight Weight:
2.75~2.85KG
The Center of Gravity (CG)：
Approx.86-95mm
Wing Area:
42.32d㎡
Wing Load:
64.98~67.34g/d㎡
Wing Angle of Incidence:
0°
Motor Thrust Angles:
Down 0° & Right 2.8°
Pack Dimension：
130*44*22 (L*H*W)cm
Gross Weight:
10KG
Servo: 13~15 Kg.cm*4 (Aileron*2,Elevator*1, Rudder*1) , Servo Arm: 1.25" 25T Servo Arm
Electric Power (Recommended): Option 1: Motor: X4120 550KV ESC: 80-100A Propeller: Eolo 15x8 Lipos: 6s 3300mah-4000mah
Option2: Motor: 4125 515KV Esc 100A Propeller: Eolo 16x8 Lipos: 6s 3300mah-4000mah
Recommended Settings of Dual Rates and Exponentials of Control Surfaces
Rate EXP Direction
Throw
Aileron
High
35~40%
Up
36~39°
Low
40~45%
Down
20~26°
Elevator
High
38~45%
Up
45~53°
Low
45~55%
Down
30~35°
Rudder
High
38~45%
Up
42~50°
Low
45~55%
Down
28~32°
-
-
