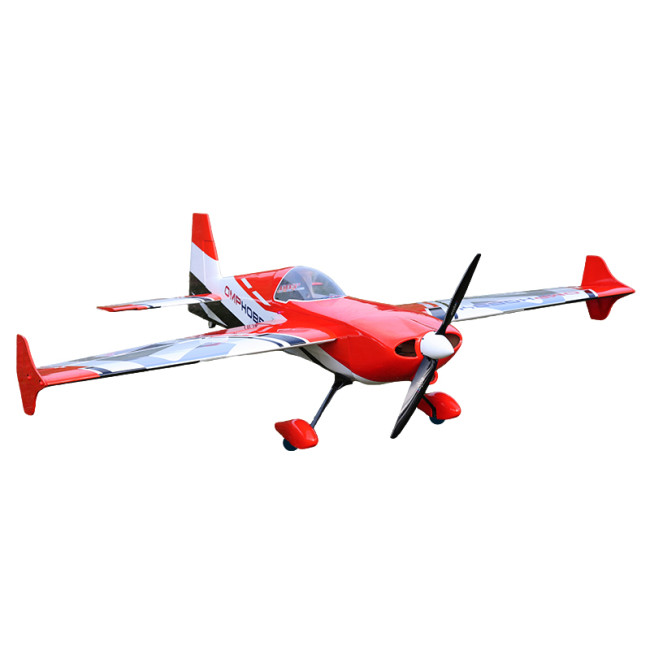

OMPHOBBY 106'' Edge 540 Kevlar Reinforced Balsa 3D Airplane

OMPHOBBY 106'' Edge 540 Kevlar Reinforced Balsa 3D Airplane

US$ 1331.00
Color
Version
ARF
Size
106”

BNF: without Transmitter

RTF-Mode1: come with Transmitter (right hand throttle)

RTF-Mode2come with Transmitter (left hand throttle)

Copy and share this link on social network or send it to your friends

Copy
Adding to cart succeed
OMPHOBBY 106'' Edge 540 Kevlar Reinforced Balsa 3D Airplane
color:red,size:xxl
Subtotal: US$ 0
View My Cart

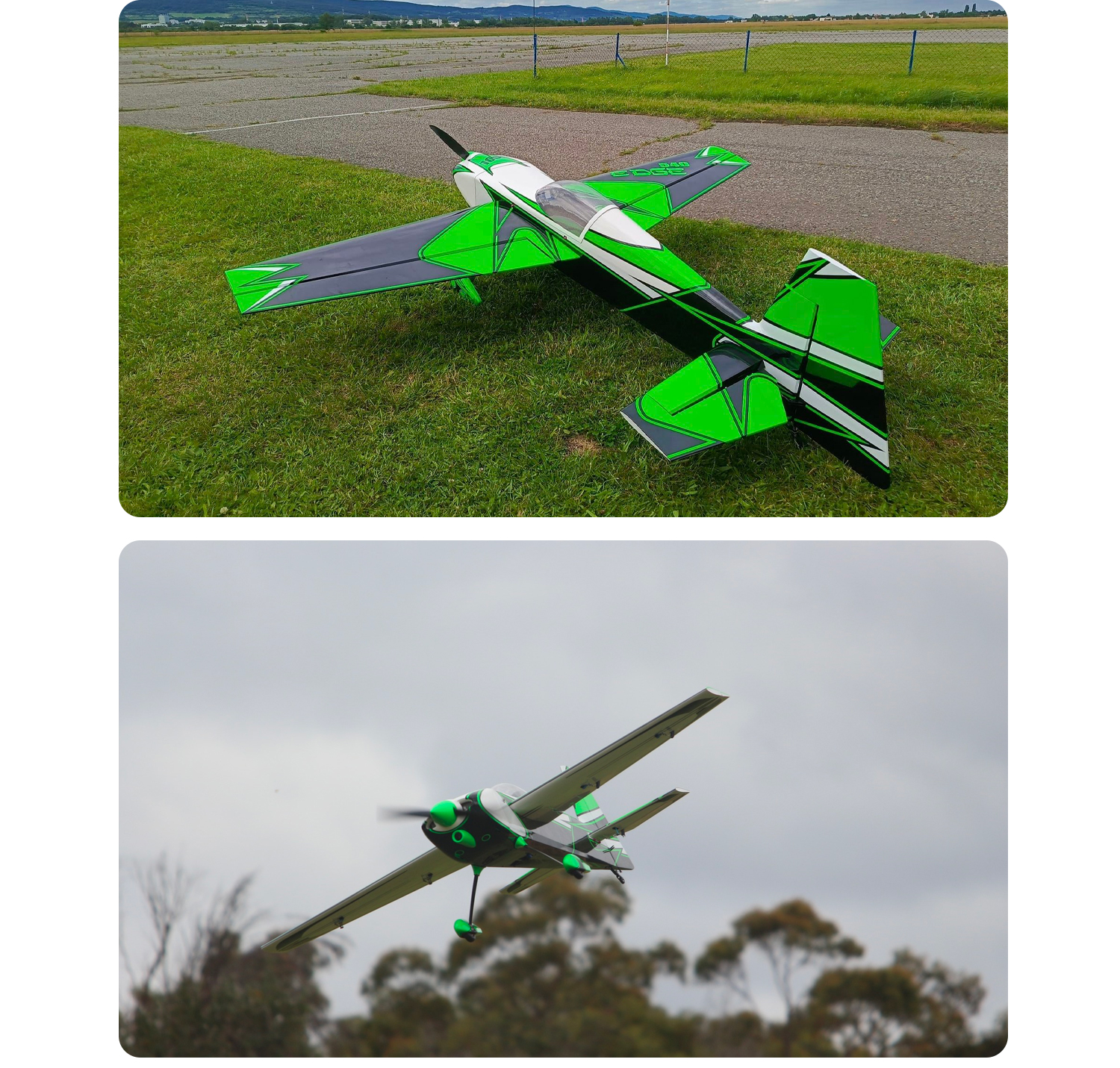

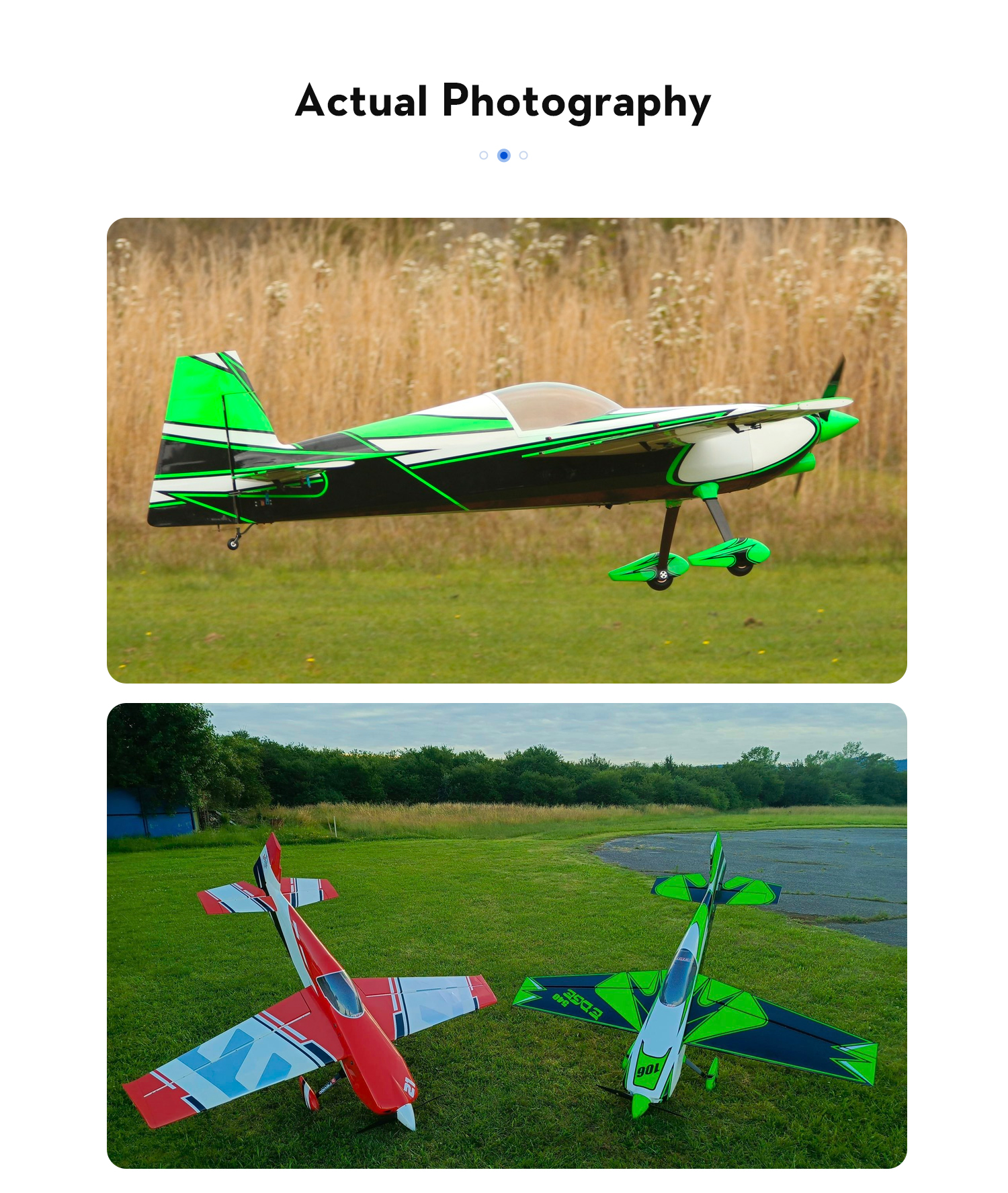

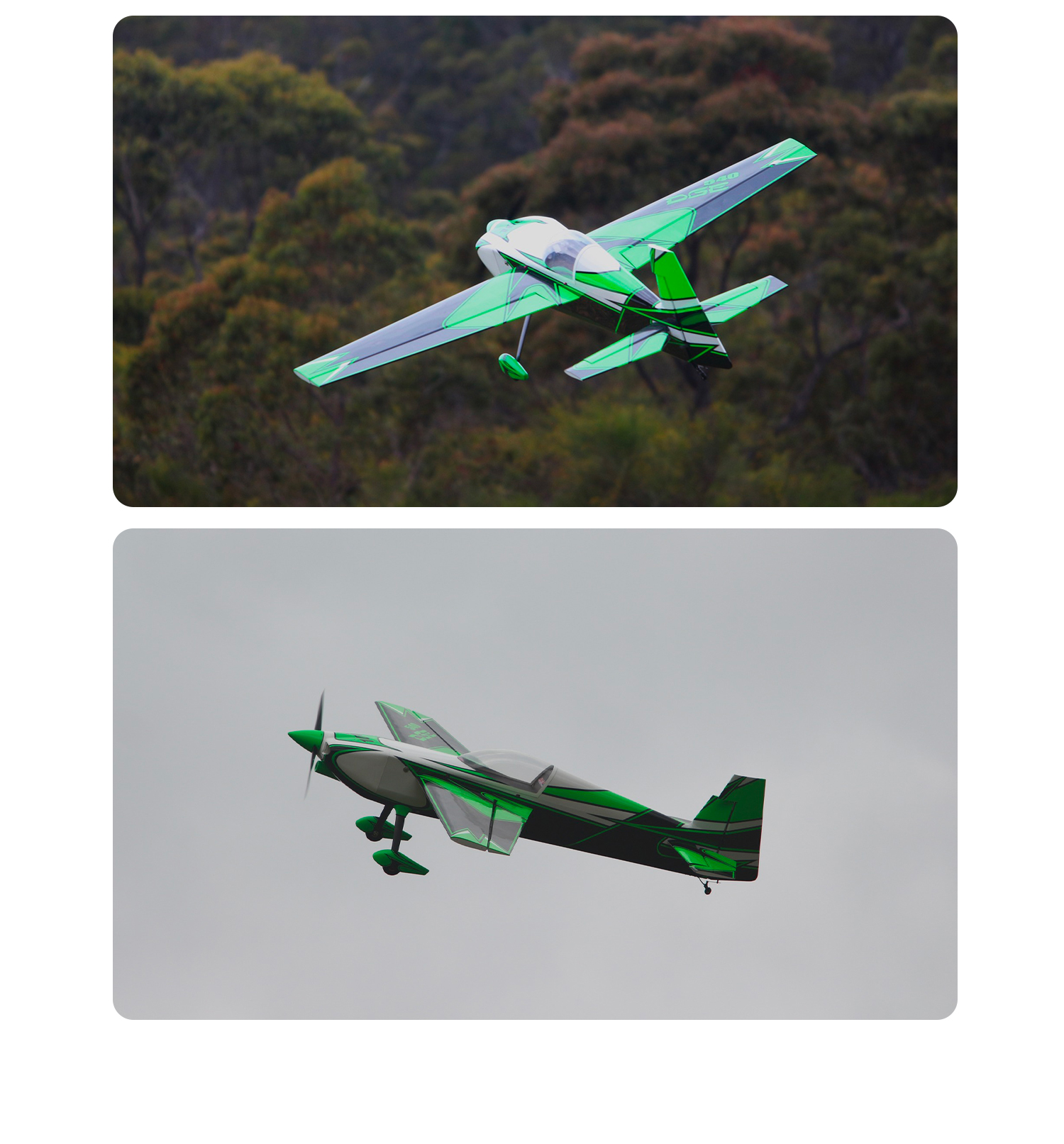

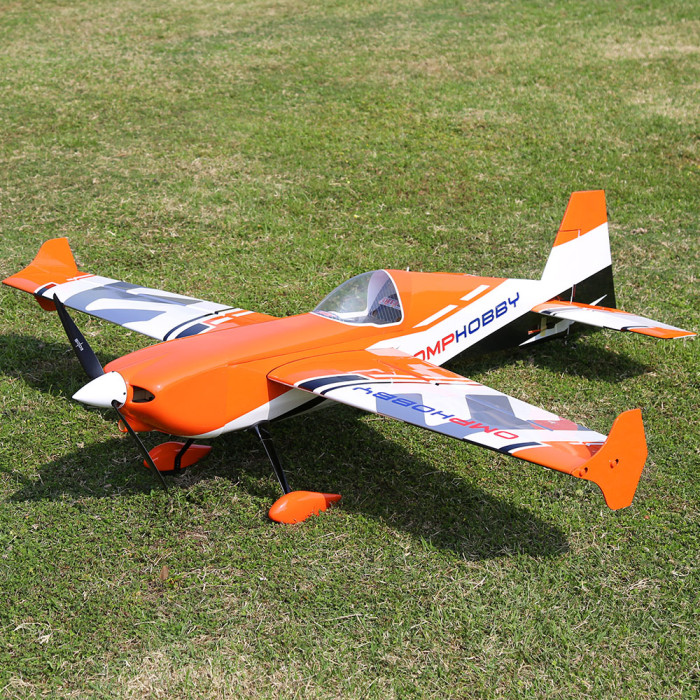

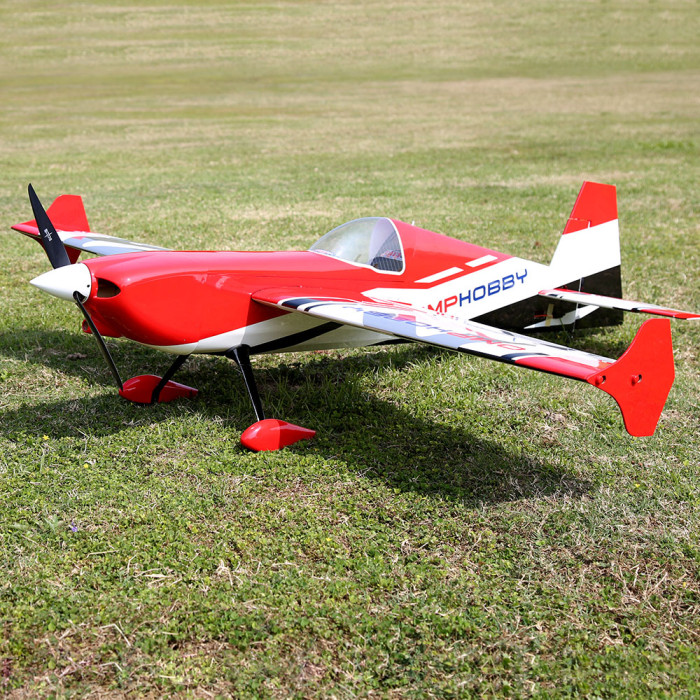

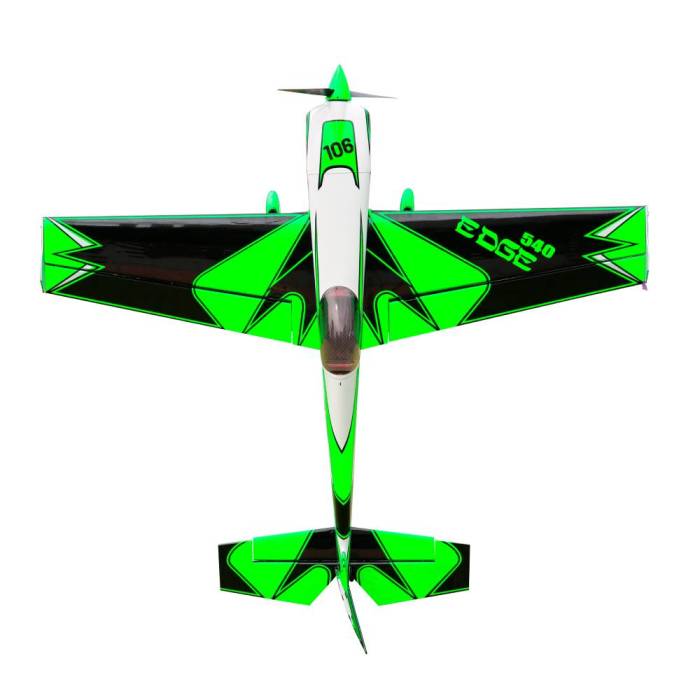

    • OMPHOBBY 106'' Edge 540 comes in the balsa version as well as the Kevlar reinforced version. We are offering Four Beautiful paint schemes (Green, Orange,Red and Yellow). Very durable and Very vibrant in color. Edge 540 is a 3D flying BEAST. This plane will do everything that you want it to do and more.
    • If you are not into 3D flying, don’t be afraid, this plane flies very well as a Sport plane too.

    Parameter Specification

    Item:
    OMPHOBBY 106”EDGE 540
    Color:
    Green▢ Red▢ Orange▢
    WingSpan:
    2690mm(106in)
    Full Length:
    2630mm(104in)
    Flight Weight:
    12.5KG
    The Center of Gravity (CG):
    Approx.170-180mm
    Wing Area:
    127.42㎡
    Wing Load:
    98.1g/d㎡
    Wing Angle of Incidence:
    0°
    Motor Thrust Angles:
    Down 0° & Right 3°
    Pack Dimension:
    106” Body: 237*49*55 cm (L*H*W)
    106” Wings: 77*21*21cm(L*H*W)

    Gross Weight:

    106” Body: 32kg
    106” Wings: 11kg

    Servo: 40~55Kg.cm*9   ( Aileron*4, Elevato*2, Rudder*2, Throttle*1), Servo Arm:  2" 25T Servo Arm

    Gas Power (Recommended): 120~130CC, Propeller: 28x10/28x11


    Recommended Settings of Dual Rates and Exponentials of Control Surfaces


    Rate EXP Direction
    Throw
    Aileron
    High
    35~40%
    Up
    36~39°
    Low
    40~45%
    Down
    20~26°
    Elevator
    High
    38~45%
    Up
    45~53°
    Low
    45~55%
    Down
    30~35°
    Rudder
    High
    38~45%
    Up
    42~50°
    Low
    45~55%
    Down
    28~32°
